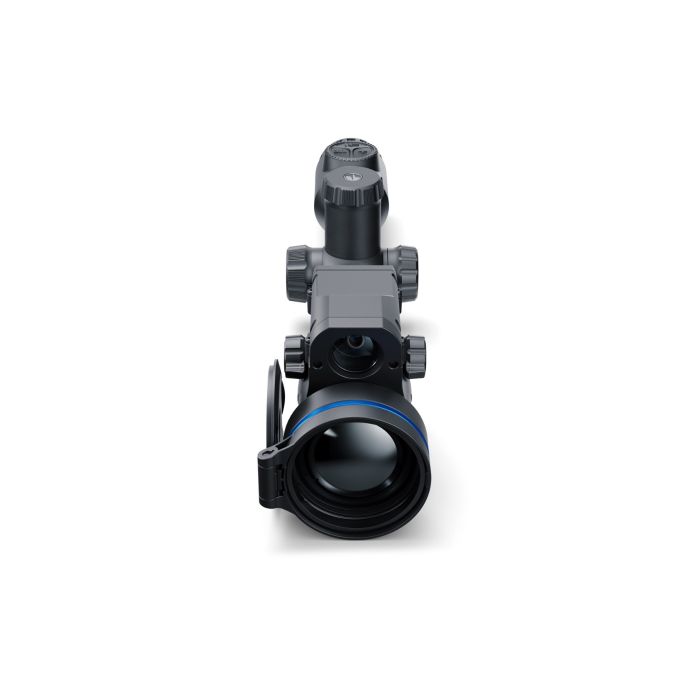

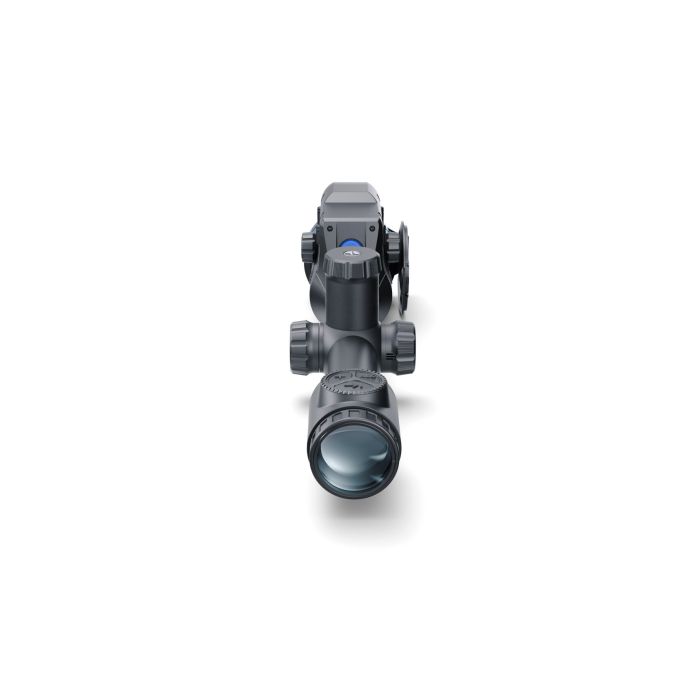

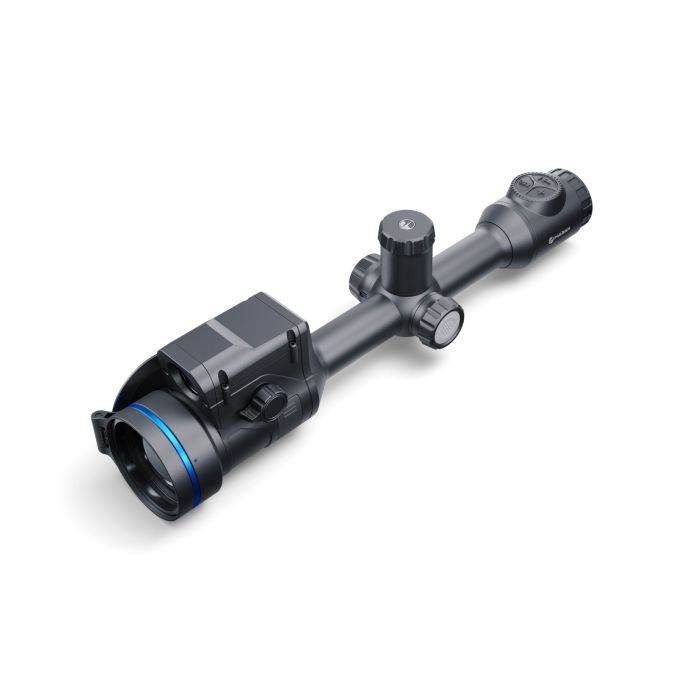

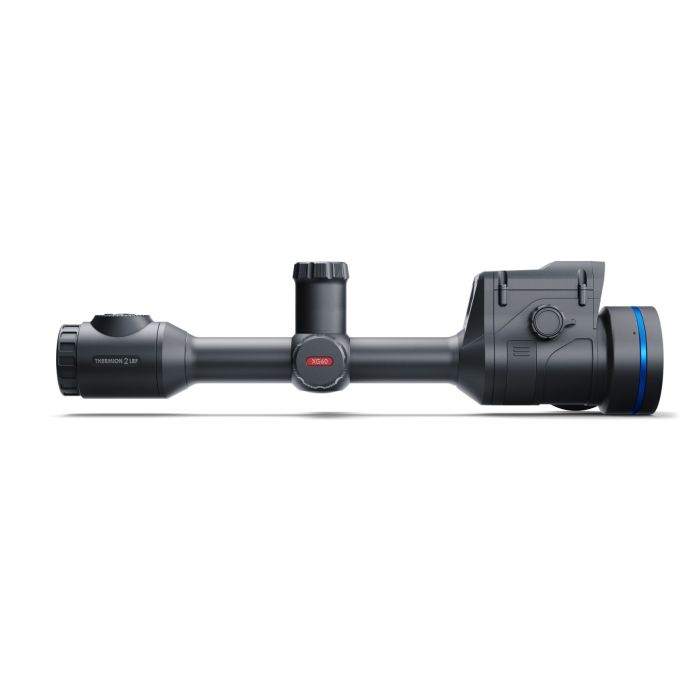

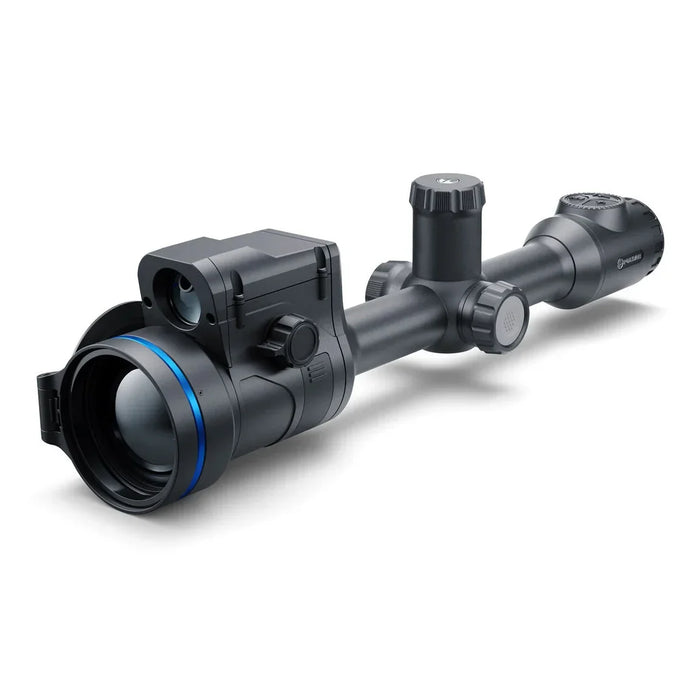

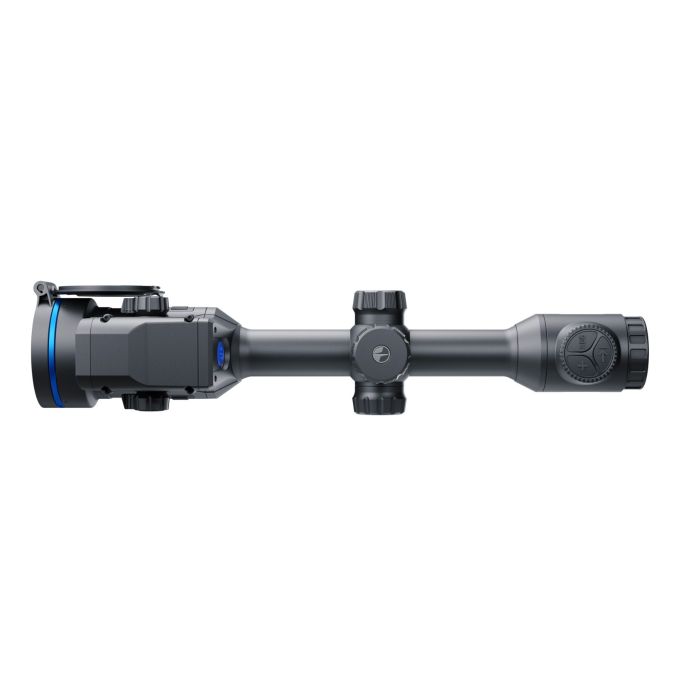

PULSAR THERMION 2 LRF XG60 THERMAL RIFLE SCOPE
Introducing the Thermion 2 LRF 60 series: the premium line of thermal imaging riflescopes with 60 mm optics for long-range shooting. With the highest base magnification in the entire range – 4x – the Pulsar Thermion 2 LRF XG60 is unrivalled for hunting small or fast-moving targets at long distances.
The newly designed Pulsar Thermion 2 LRF 60 series also features enhanced eyepiece optics with 65 mm eye relief, setting a new standard in its class, while increasing safety. Optimised for high-resolution micro displays, the wide-angle eyepiece significantly boosts viewing comfort.
With these advanced features, the Pulsar Thermion 2 LRF 60 series stands out as one of the most powerful thermal riflescopes on the market, expanding the entire Pulsar Thermion 2 LRF range to fit every hunter’s needs.
WIDE FIELD OF VIEW FOR SCANNING
The Thermion 2 LRF series allows you to choose the best field of view for your application. With 14.4 ° in the Thermion 2 LRF XP60 you’re sure to find the best FOV and magnification ratio for your needs.
65MM EYE RELIEF
Designed for long-range use, the Pulsar Thermion 2 LRF 60 line is also safe to use with high-calibre ammunition. The 65 mm eye relief is the highest in its class, ensuring both enhanced safety and flawless screen visualization.
PRECISE LASER RANGE FINDING
Understanding the target distance is an essential factor in making the right decisions. The compact laser rangefinder, with a range of up to 800 metres, is seamlessly integrated into a slim-design riflescope. The receiver and emitter are within the clearance limits of a single optical channel.
| Specification | Details |
|---|---|
| Main Specifications | |
| Detection Range | 2800 m |
| Sensor | |
| Type | Uncooled |
| Resolution | 1024 x 768 @ 12 µm |
| Pixel Pitch | 12 µm |
| Sensor NETD | < 35 mK |
| System NETD | < 20 mK |
| Frame Rate | 50 Hz |
| Optics | |
| Objective Lens | F60/1.1 |
| Magnification | 2.5 – 20x |
| Field of View (Degrees) | 11.7° |
| Field of View (m @ 100m) | 20.5 m |
| Eye Relief | 65 mm |
| Reticle | |
| Click Range (H/V @ 100m) | 3200 / 3200 mm |
| Click Value (H/V @ 100m) | 16 mm (2.5x), 8 mm (5x), 4 mm (10x), 2 mm (20x) |
| Preloaded Reticles | 10 |
| Display | |
| Type | Micro-OLED |
| Resolution | 2560 x 2560 |
| Laser Rangefinder | |
| Max Measuring Range | 800 m |
| Measurement Accuracy | ± 1 m |
| Safety Class | Class 1 (IEC 60825-1:2014) |
| Wavelength | 905 nm |
| Video Recorder | |
| Video / Photo Resolution | 1280 x 960 |
| Video / Photo Format | .mp4 / .jpg |
| Built-in Memory | 64 GB |
| Bluetooth | |
| Protocol | BLE 4.2 |
| Standard | IEEE 802.15.1 |
| Frequency | 2.4 GHz |
| Wi-Fi | |
| Standard | IEEE 802.11 b/g/n/ac (WPA) |
| Frequency | 2.4 / 5 GHz |
| Environmental Characteristics | |
| Protection Rating | IPX7 (Waterproof) |
| Operating Temperature | -25°C to +50°C |
| Connections & Compatibility | |
| Compatible Mounts | Standard 30 mm rings |
| Supported Applications | Stream Vision 2, Stream Vision Ballistics |
| Smooth-bore Shock Resistance | Caliber 12 |
| Max Recoil Power (Rifled) | 6000 Joules |
| Power Supply | |
| Output Voltage | 3.0 – 4.2 V |
| Battery Type | Dual Li-Ion Battery Pack: APS3 3200 mAh (removable) + 4900 mAh (built-in) |
| Total Capacity | 8100 mAh |
| Operating Time (22°C) | Up to 8 hours |
| External Power Supply | 5V (USB Type-C) |
| Weight & Size | |
| Body Material | Aluminum alloy |
| Dimensions | 442 x 84 x 98 mm |
| Weight | 1.2 kg |
