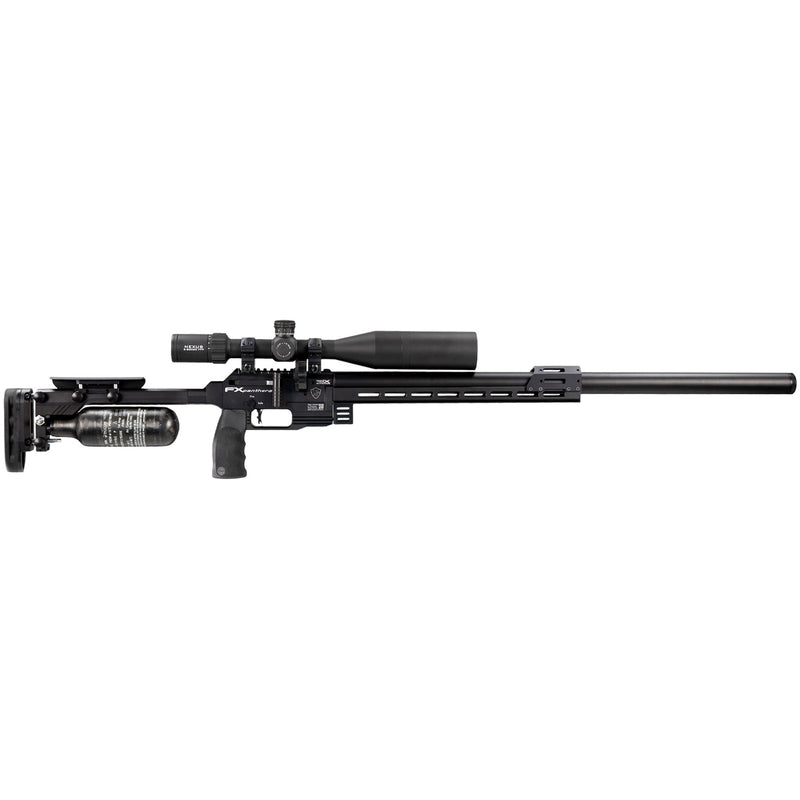

FX Airguns Panthera EXP 700 .22 LR Air Rifle
Firearm Specifications
| Specification | Details |
|---|---|
| Model | Panthera Expert 700 |
| Action type | Bolt |
| Calibre | .22 LR |
| Cartridge type | Pellet |
A Dedicated, Purpose-Built Air Rifle made to win .22 LR precision rifle competitions
The FX Panthera is unlike any previous FX Airguns rifle. It is a dedicated slug rifle, purpose-built with precision competition in mind, accelerating the FX Airguns legacy and pushing the boundaries of airgun performance. The Panthera includes technology displaying a generational leap-forward for an airgun.
It begins with the new Dynamic Block, a new breech block designed from the ground up for performance slug shooting. The Dynamic Block utilizes a compact one-piece valve. This High-Power / Short-Impulse Valve is extremely efficient while allowing an immense and precise flow of air.
The plenum design (i.e. Dynamic Plenum) feeding the Panthera is revolutionary and the first of its kind. It is an over-the-barrel plenum which provides a consistent regulated pressurized plenum around the barrel, adding increased rigidity to the barrel as well as allowing multiple plenum lengths to be employed to match the calibre and power of the rifle. Precise levels of pressure are maintained by the single AMP MKII Regulator. Three sizes of plenum will be utilized initially: a Micro Plenum (sub 12ft/lb rifles), Macro Plenum (62 cc) & Magnum XL Plenum (156 cc). The results of the Dynamic Breech & Plenum are extraordinary!
Testing has yielded constant 10 shot strings with standard deviations in the low 1.0–2.0 range and extreme spreads as low as 3-4. This ability to precisely control air flow paired with the world-class FX Superior STX barrel using premium slugs will yield competition wins, and not just in airgun competitions. .22LR precision shooters will identify the ability to shoot the same BC slugs and weights they are used to, but with the control and standard deviations that only FX Airguns can deliver.
Stock is designed for competition. It features a 14.75” long Arca rail complete with M-LOK sections and a barricade block nestled next to the breech (you can achieve an ideal balance point by adding external M-LOK compatible weights or internal FX Barrel Weights that attach under the shroud). The Panthera further fits the shooter using a fully adjustable buttstock and an adjustable cheekpiece that is also ambidextrous.
Air source is a 300cc carbon fibre bottle attached in the rear and is filled via a rear located foster quick disconnect. The Dynamic Block has a larger breech than previous rifles that allows projectiles up to 13mm in length. It uses the Standard Side-Shot Magazine but with a newly designed deeper lid to accommodate longer length slugs. The FX Panthera employs the Quick Tune System (the same as found on the FX Impact M3), uses a 20MOA picatinny scope rail, comes standard with a zero-angle AR grip, and has an ambidextrous sidelever cocking handle that is reversible to the left side of the rifle. Dual angled Manometers on the left side of the block show the bottle pressure and the regulated plenum pressure.
The FX Panthera will be offered in three configurations, the Panthera 700, Panthera 600 & Panthera 500 (corresponding to barrel length). The Panthera 600 & 700 utilize the FX Superior Heavy STX barrel liner as standard as they have been purpose built for slug shooting. The Panthera 500 uses the standard FX Superior STX barrel liner that shoots both pellets and light weight slugs. The rifle allows for the quick change of barrel liners but changing calibres and affixing different barrel lengths to the Panthera can only be done by an authorized FX dealer.
Additional accessories will be offered to further customize the rifle including a bag rider, barrel weights, offset M-LOK weights, smaller profile competition Mini-Mag, Picatinny accessory sections, and an optional tungsten hammer. The new FX Panthera will forever change the precision rifle world. It feels and shoots like a precision 22LR, enjoying straight back recoil, but with laser sharp precision and accuracy only found with an FX Airgun!
Standard versions comes delivered in a tailored cut-out hard-case.
Note: Muzzle energy listed in the specifications of each rifle is for maximum setting. Due to differences in regulations the rifle is often produced with a lower muzzle energy from the factory. Contact your dealer for more info about muzzle energy in your region.
Key Features
- Ambidextrous sidelever cocking system
- Adjustable match trigger
- AMP Mk II externally adjustable regulator
- Quick Tune hammer spring adjustment
- Carbon fibre removable air cylinder
- Picatinny optics rail with built-in angle
- AR15-compatible zero-angle grip
- Arca-Swiss fore-end rail
- M-LOK accessory mounting system
- Available in .177, .22, .25 and .30 calibre
- Available with 500mm, 600mm or 700mm barrel configurations
Technical Specifications
| Cocking System | Right-hand positioned sidelever with ambidextrous mount for left-hand relocation. |
|---|---|
| Calibres | .177 / 4.5mm, .22 / 5.5mm, .25 / 6.35mm, .30 / 7.62mm |
| Fill Pressure | Max 250 bar / 3625 psi |
| Safety | Switch style |
| Trigger | Adjustable match trigger. Trigger blade adjustable for reach, height and angle. |
| Pressure Gauges | Dual angled WIKA gauges for air tube pressure and regulator pressure. |
| Air Capacity | 300cc air cylinder plus plenum volume |
| Air Cylinder | Removable carbon fibre wrapped air tank |
| Charging | Rear Foster Quick Disconnect with dust cap included |
| Optics | Picatinny rail with built-in angle. Marked for easy repositioning of optics. |
| Muzzle | Built-in shroud system. Variations may occur depending on country. |
Magazine
Removable high-capacity, easy-load magazine with a deeper lid to accommodate longer slugs. Maximum ammunition length: 13mm / 0.51". Made from durable injection-moulded POM.
| Calibre | Magazine Capacity |
|---|---|
| .177 / 4.5mm | 21 shots |
| .22 / 5.5mm | 18 shots |
| .25 / 6.35mm | 16 shots |
| .30 / 7.62mm | 13 shots |
Stock & Ergonomics
Rear
- Ambidextrous design
- Recoil pad adjustable for height, angle and length of pull
- Cheek piece adjustable in height with ambidextrous mount
- Mount for bag rider
Grip
- Zero-angle grip
- AR15 mount specifications
Fore-End
- Arca-Swiss rail, 14.75" length
- M-LOK system on left and right sides
- M-LOK style mounting on the bottom of the stock
- Top accessory mount with five Picatinny rail mounting positions
- Barricade stops at the front and rear of the fore-end for improved grip from barricades and unconventional shooting positions
Barrel Options
| Model | Barrel | Length |
|---|---|---|
| 500 | FX Superior STX barrel liner | 500mm |
| 600 | Superior Heavy STX barrel liner with carbon fibre liner sleeve | 600mm |
| 700 | Superior Heavy STX barrel liner with carbon fibre liner sleeve | 700mm |
Shot Capacity
| Calibre | 500 | 600 | 700 |
|---|---|---|---|
| .177 / 4.5mm | N/A | N/A | N/A |
| .22 / 5.5mm | 112 shots with 15.89gr pellet at 870 fps | 80 shots with 22gr hybrid slug at 900 fps | 90 shots with 22gr hybrid slug at 900 fps |
| .25 / 6.35mm | 56 shots with 25.39gr pellet at 880 fps | 60 shots with 26gr hybrid slug at 900 fps | 70 shots with 26gr hybrid slug at 900 fps |
| .30 / 7.62mm | 37 shots with 44.75gr pellet at 860 fps | 35 shots with 44.5gr hybrid slug at 900 fps | 40 shots with 44.5gr hybrid slug at 900 fps |
Energy Output
| Calibre | 500 | 600 | 700 |
|---|---|---|---|
| .177 / 4.5mm | N/A | N/A | N/A |
| .22 / 5.5mm | Up to 95 J / 70 ft-lbs with 34gr slug at 960 fps | Up to 111 J / 82 ft-lbs with 34gr pellet at 1040 fps | Up to 130 J / 96 ft-lbs with 40gr slug at 1040 fps |
| .25 / 6.35mm | Up to 108 J / 80 ft-lbs with 43.5gr slug at 910 fps | Up to 123 J / 91 ft-lbs with 43.5gr slug at 970 fps | Up to 145 J / 107 ft-lbs with 55.5gr slug at 930 fps |
| .30 / 7.62mm | Up to 150 J / 110 ft-lbs with 64gr slug at 880 fps | Up to 176 J / 130 ft-lbs with 64gr slug at 1020 fps | Up to 203 J / 150 ft-lbs with 70gr slug at 982 fps |
Note: Energy figures are maximum FAC power output using tungsten hammer.
Dimensions
| Model | Length | Weight |
|---|---|---|
| 500 | 965mm / 38" | 3.5kg / 7.65lbs |
| 600 | 1118mm / 44" | 3.7kg / 8.10lbs |
| 700 | 1245mm / 49" | 3.9kg / 8.55lbs |
Plenum Options
| Micro Plenum | Sub 12 ft-lb rifles |
|---|---|
| Macro Plenum | 62cc |
| Magnum XL Plenum | 156cc |
| 500 | Macro, or Micro for sub 12 ft-lb rifles |
| 600 | Magnum XL |
| 700 | Magnum XL |
Additional Features
- AMP Mk II Regulator: externally adjustable
- Quick Tune System: micro and macro hammer spring tension adjustment
- Case: tailored cut-out hard case
Note: Scope & rings not included.
Images shown are for illustration purposes only.
