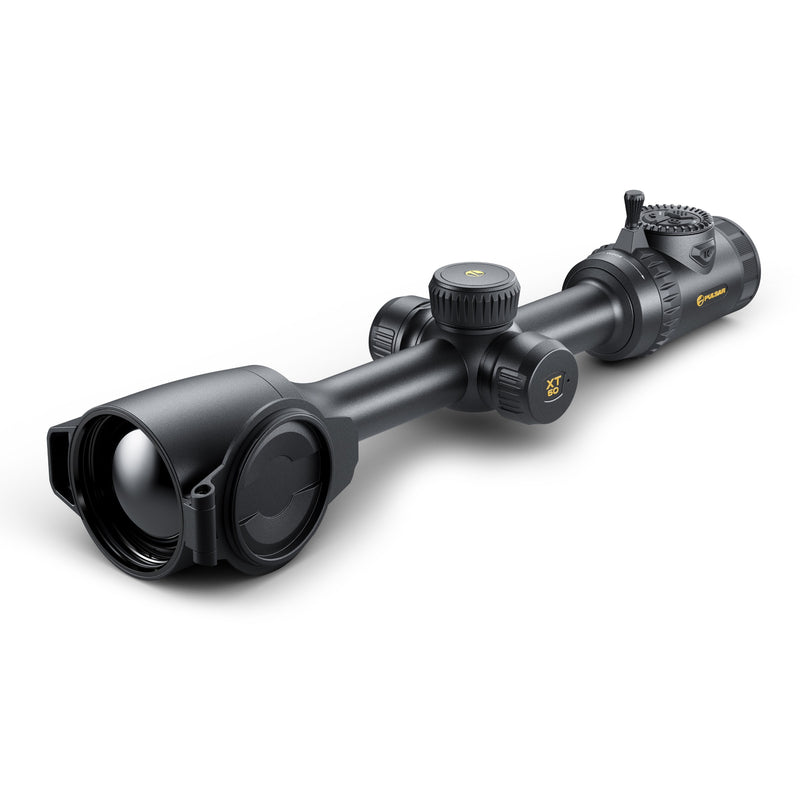

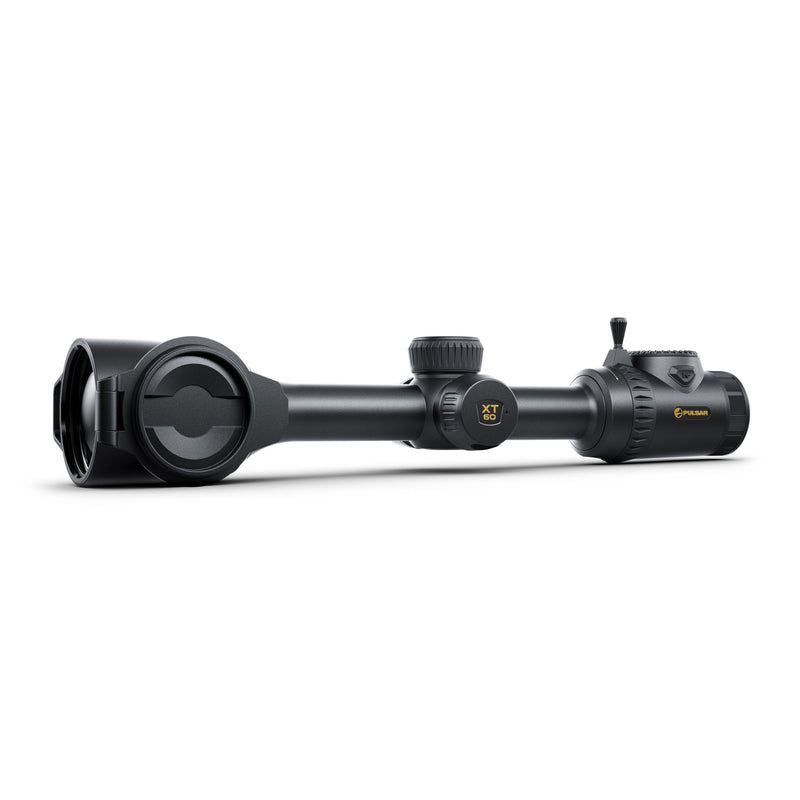

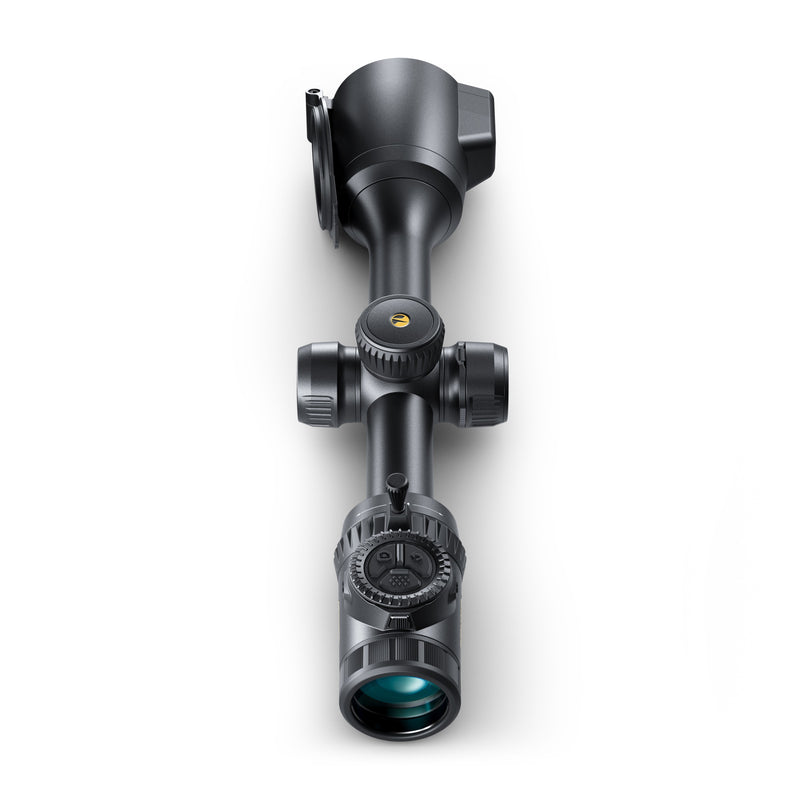

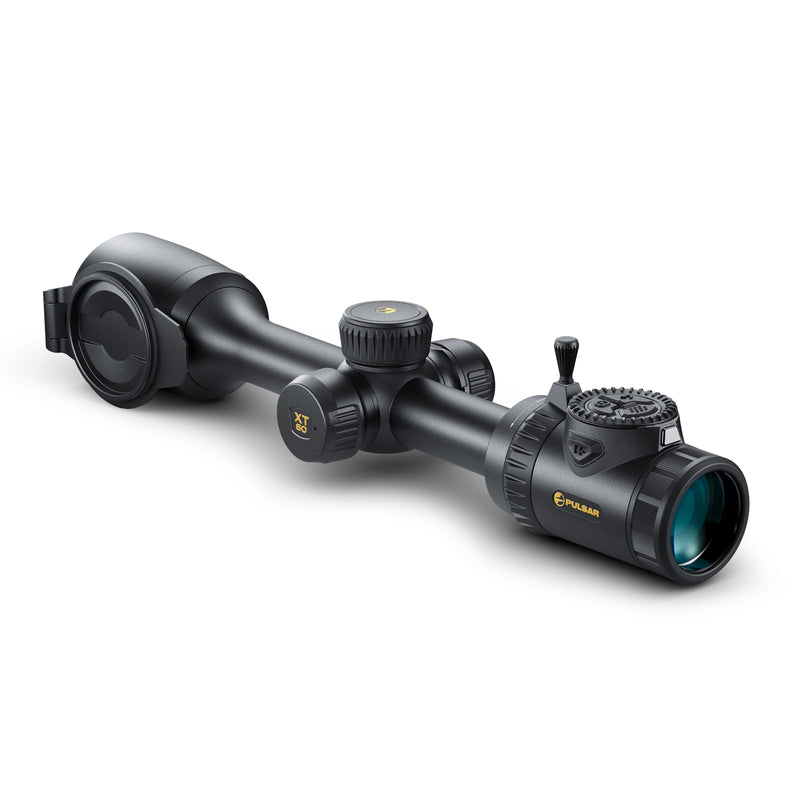

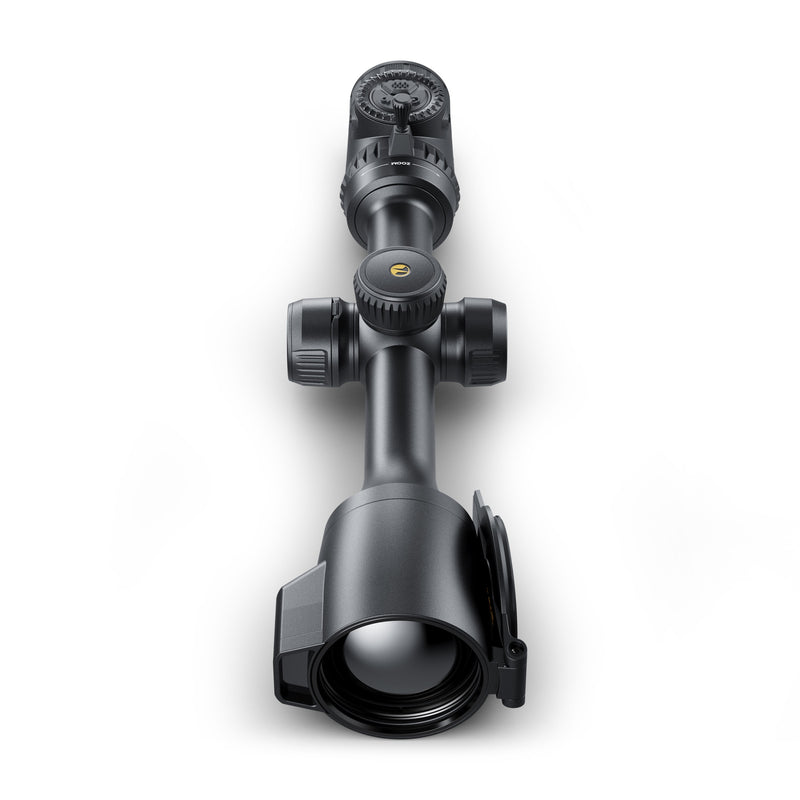

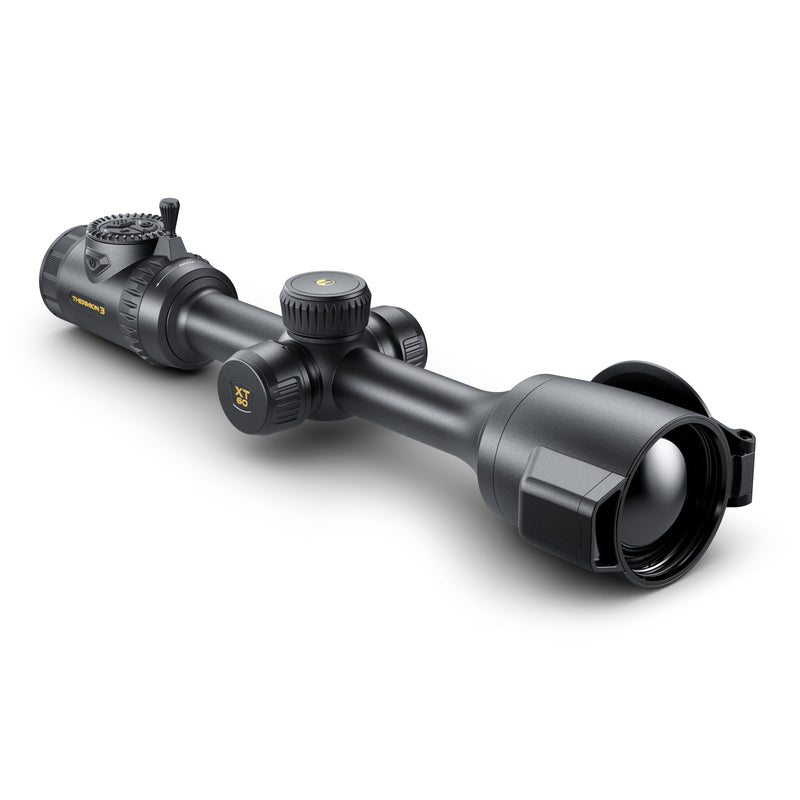

Pulsar Thermion 3 LRF XT60 Thermal Riflescope

The Pulsar Thermion 3 LRF XT60 is a thermal imaging riflescope featuring a 1280 × 1024 pixel microbolometer, 60 mm F1.0 objective lens, 2–24× magnification and an integrated laser rangefinder with a measurement range of up to 1,200 metres.

The XT60 combines its high-resolution thermal sensor with a 2560 × 2560 AMOLED display and a horizontal field of view of 14.6°, equivalent to 25.7 metres at a distance of 100 metres. The unit incorporates top turret wheel focusing, an integrated ballistic calculator and recoil-activated video recording within a conventional 30 mm tube design.

Additional functionality includes 128 GB of internal storage, dual-band Wi-Fi, Bluetooth connectivity and compatibility with Stream Vision 2 and Stream Vision Ballistics applications. The APS5 battery provides a stated operating time of up to 8.5 hours.

Features

• 1280 × 1024 pixel thermal microbolometer with 12 µm pixel pitch.
• System NETD of less than 20 mK.
• 60 mm F1.0 objective lens.
• 2–24× magnification.
• Wide 14.6° horizontal field of view.
• Thermal detection range of up to 3,100 metres.
• Integrated laser rangefinder with a measurement range of up to 1,200 metres.
• Integrated ballistic calculator.
• 2560 × 2560 AMOLED display.
• Top turret wheel focusing and ergonomic controls.
• Recoil-activated video recording and photo capture.
• 128 GB internal memory.
• Dual-band Wi-Fi and Bluetooth connectivity.
• Nine colour palettes and three sensitivity amplification levels.
• IP67-rated aluminium alloy housing.
• APS5 battery with a stated operating time of up to 8.5 hours.

Specifications

1. Brand Pulsar
2. Model Thermion 3 LRF XT60
3. Manufacturer SKU 76590 (without mount)
4. Sensor Resolution 1280 × 1024 pixels
5. Pixel Pitch 12 µm
6. System NETD <20 mK
7. Frame Rate 50 Hz
8. Magnification 2–24×
9. Objective Lens 60 mm / F1.0
10. Horizontal Field of View 14.6°
11. Field of View at 100 m 25.7 m
12. Thermal Detection Range 3,100 m
13. Display Type AMOLED
14. Display Resolution 2560 × 2560 pixels
15. Click Value at 100 m 20 mm
16. Click Range at 100 m (H/V) 4000 / 4000 mm
17. Eye Relief 65 mm
18. Diopter Adjustment -5 / +5 dptr
19. Laser Rangefinder Integrated, Class 1
20. Rangefinder Measurement Range 1,200 m
21. Sensitivity Levels Normal / High / Ultra
22. Colour Palettes 9
23. Image Enhancement Smoothing filter
24. Calibration Manual / Automatic / Semi-automatic
25. Video and Photo Recording Yes
26. Internal Memory 128 GB
27. Wi-Fi 2.4 GHz / 5 GHz
28. Bluetooth Yes
29. USB Connection USB Type-C
30. Mobile Applications Stream Vision 2 / Stream Vision Ballistics
31. Battery Type APS5
32. Battery Life Up to 8.5 hours
33. External Power 5V / 9V USB Type-C PD
34. Maximum Recoil Power 6,000 J
35. Housing Material Aluminium alloy
36. Ingress Protection IP67
37. Operating Temperature -25°C to +50°C
38. Dimensions (with Eyecup) 391 × 96 × 90 mm
39. Weight (with Battery, without Mount) 1.3 kg
